XTREM H07RN-F Flexible Rubber Power Cable

XTREM H07RN-F Flexible Rubber Power Cable

XTREM H07RN-F Flexible Rubber Power Cable

XTREM H07RN-F: The Pump Cable Built for the Field.
Available at your local Irrigear® Independent Experts.

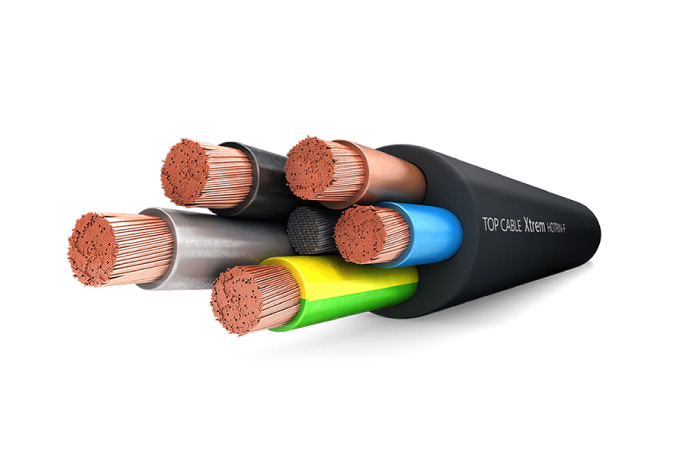

The XTREM H07RN-F is a premium heavy-duty flexible rubber power cable designed for demanding mobile and industrial applications. It excels in harsh conditions, offering exceptional resistance to oils, abrasion and UV.

The XTREM H07RN-F is Top Cable's premium flexible rubber cable, manufactured to EN 50525-2-21 / IEC 60245-4 and approved under HAR, AENOR and DNV certifications. For irrigation professionals, its standout credentials are its AS/NZS 4020 certification for use in drinkable water systems and its AD8 deep submersion rating — making it the correct specified choice for bore pumps, open-channel pumps and submersible installations of all types.

The thermosetting rubber (EI7) insulation and EM2 outer sheath deliver extraordinary flexibility and mechanical toughness, with a minimum bending radius of just 3x cable diameter for sizes under 12mm. The cable performs in fixed installations up to 1000V and in mobile service at 450/750V, covering everything from pivot irrigator trailing cable to portable pump connections.

Advice. Products. Solutions. Australia-wide. Locally source and buy XTREM H07RV-F Power Cables and other great TROPAC products and solutions from the leaders in pumping, irrigation, filtration, water and fluid management – Irrigear® Independent Experts.

  • Premium heavy-duty flexible rubber power cable
  • Mobile of fixed installations
  • Excels in harsh conditions
  • UV, oils and abrasion resistant
  • AS/NZ 4020 compliant
  • AD8 deep submersible rating
XTREM H07RN-F Rubber Flex Power Cable
Explore TROPAC Irrigear Store Locator

XTREM H07RN-F Cable
Key Specifications

The XTREM H07RN-F excels in harsh conditions, offering exceptional resistance to oils, abrasion, and UV. It is certified for permanent deep-water submersion (AD8) and drinkable water.

  • Voltage: 450/750V (mobile service); up to 1000V in fixed protected assemblies
  • Conductor Temperature: 90°C max; short-circuit 250°C (max. 5s)
  • Minimum Service Temperature: -40°C (fixed); -25°C (mobile)
  • Submersion: AD8 rated; AS/NZS 4020 drinkable water certified; AWQC
  • Sheath: Thermosetting flexible rubber EM2 — excellent oil, grease, UV and chemical resistance
  • Flame: Non-propagating to EN/IEC 60332-1; CPR Eca rated
  • Sizes: 1.5mm² to 630mm² single-core; multicore 2C to 27C configurations available

XTREM H07RN-F Cable
Applications

The XTREM H07RN-F is a premium, heavy-duty flexible rubber power cable built for demanding industrial, marine, and mobile environments.

  • Submersible Pumps and Deep Bores
  • Agriculture
  • Construction
  • Aquaculture
  • Heavy-duty Temporary Power Distribution and Extension Leads
  • Mining Industry, Oil & Gas
  • Mobile Machinery
  • Wind Turbines
  • Dynamic Industrial Automation
  • Stage Lighting, Audio-visual Events
  • Marine

Electrical performance
Low voltage: 450/750 V.

Thermal performance
Maximum conductor temperature: 90°C.
Maximum short-circuit temperature: 250°C (max. 5 s).
Minimum service temperature: -40°C (fixed and protected installations) and -25°C (mobile use).

Fire performance
Flame non-propagation according to EN 60332-1 / IEC 60332-1.
Reaction to fire CPR: Eca according to EN 50575.

Mechanical performance
Minimum bending radius:
  3x cable diameter < 12 mm.
  4x cable diameter ≥ 12 mm.
Impact resistance: AG2 Medium severity.

Environmental performance
Chemical & Oil resistance: Excellent.
Grease & mineral oils resistance: Excellent.
UV Resistant according to EN 50618.
Water resistance: AD8 Submersion.
Cable for submersible pumps in drinkable water according to AS/ NZS 4020.
Deep wells. AWQC.

Installation conditions
Open Air.
Submersible pumps cable.

Other
Meter by meter marking.

XTREM H07RN-F Cable - flexible rubber power cable (video)

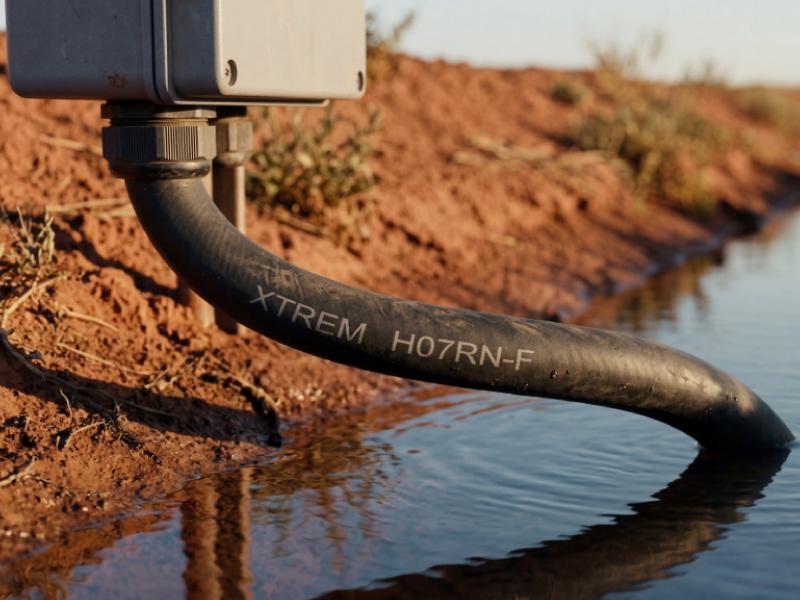

XTREM H07RN-F Cable is ideal for field use - mobile or fixed installations
XTREM H07RN-F Cable is ideal for field use - in tough Australia conditions
XTREM H07RN-F Cable - flexible rubber power cable (video)
XTREM H07RN-F Cable is ideal for field use - mobile or fixed installations
XTREM H07RN-F Cable is ideal for field use - in tough Australia conditions
TROPAC

Industrical Electrical Solutions

TROPAC is the exclusive Australian and New Zealand distributor for Top Cable — a leading European cable manufacturer and specialist in flexible cables for over 50 years. The Powerflex brand is TROPAC's market name for the Top Cable range in Australia and New Zealand. XTREM is a Top Cable brand name used specifically for their H07RN-F heavy-duty thermosetting rubber flexible cable — the pump and submersible cable range stocked and supported by TROPAC nationally.

Our Powerflex flexible cable range is manufactured in Europe by Top Cable, stocked locally by TROPAC, and available through your nearest Irrigear store.
