Powerflex RV-K Cable
Powerflex RV-K: Flexible Power Cable for Pump Stations & Irrigation Infrastructure.
Available from your local Irrigear® Independent Experts.

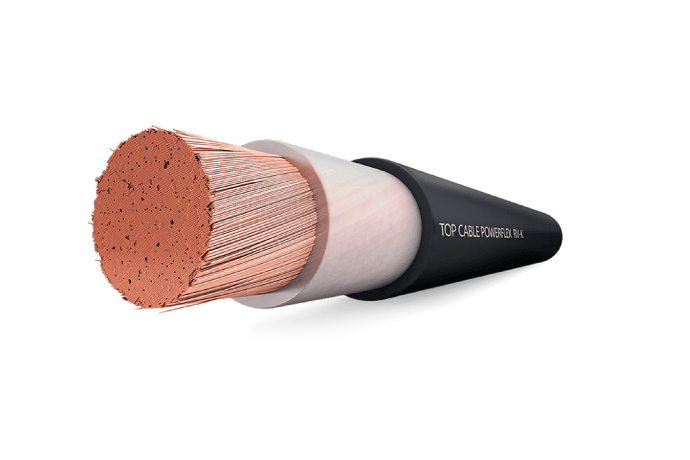

Powerflex RV-K is a high-performance, flexible industrial power cable often used for mobile, demanding environments, solar setups, and submersible applications. It features Class 5 flexible annealed copper conductors and tough XLPE (Cross-linked polyethylene) insulation, handling continuous operating temperatures up to 90° C.
The Powerflex RV-K is Top Cable's industrial flexible power cable, manufactured to IEC 60502-1 and approved under AENOR, Bureau Veritas, KEMA-KEUR and RETIE certifications. Rated at 0.6/1kV with XLPE insulation and a flexible PVC sheath, the RV-K is designed for the demanding realities of irrigation and agricultural electrical infrastructure — where cables must go through conduit, across cable trays, through wet ground and into motor control panels with equal reliability.
Its high flexibility significantly simplifies installation in tight or complex layouts, and it can be buried directly without additional protection. Water resistance to AD8 submersion makes it suitable for below-ground and wet environment use, while UV resistance extends its working life in open-air applications exposed to Australian conditions.
Advice. Products. Solutions. Australia-wide. Locally source and buy Powerflex RV-K Power Cables and other great TROPAC products and solutions from the leaders in pumping, irrigation, filtration, water and fluid management – Irrigear® Independent Experts.
- Fully submersible (AD8)
- High thermal capacity
- Class 5 flexible copper
- Durable outer sheath
- Exceptional flexibility
- Cost-effective
Powerflex RV-K Power Cable
Key Specifications
Powerflex RV-K is a high-performance, flexible industrial power cable often used for mobile, demanding environments, solar setups, and submersible applications.
Cross-linked Polyethylene (XLPE) insulation material mean that Powerflex RV-K is engineered to meet the most demanding industry requirements: flexibility, dry and wet electrical performance, chemical resistance, maximum and minimum temperature resistance, and extended lifespan of the cable installation.
- Voltage: 0.6/1kV
- Conductor Temperature: 90°C max; short-circuit 250°C (max. 5s)
- Minimum Service Temperature: -40°C (fixed/protected installations)
- Submersion: AD8 rated
- Insulation: XLPE (DIX-3)
- Sheath: Flexible PVC (DMV-18/ST2) — UV resistant
- Flame: Non-propagating to EN/IEC 60332-1; CPR Eca; reduced halogen emission (Chlorine <15%)
- Installation: Open-air, buried, conduit, cable tray
- Sizes: 1.5mm² to 1000mm² single-core; multicore 2C to 24C; 3C+E configurations available
Powerflex RV-K Power Cable
Applications
Engineered to meet Australian requirements, Powerflex RV-K cable is suitable for all types of low voltage industrial-type connections. Its high flexibility makes the installation process substantially easier and, as a result, is particularly suitable for use in difficult layouts. It can be buried or installed in a tube as well as outdoors without requiring additional protection. This cable can withstand damp conditions including total submersion in water (AD8).
- Submersible Pump and Bore Installations
- Outdoor and Direct Burial
- Complex Industrial Layouts
- General Power Distribution
- Entertainment and Events
Electrical performance
Low voltage: 0,6/1 kV.
Thermal performance
Maximum conductor temperature: 90ºC.
Maximum short-circuit temperature: 250ºC (max. 5 s).
Minimum service temperature: -40ºC (fixed and protected installations).
Minimum installation and handling temperature: 0°C (on cable surface).
Fire performance
Flame non-propagation according to EN 60332-1 / IEC 60332-1.
Reaction to fire CPR: Eca according to EN 50575.
Reduced halogen emission. Chlorine < 15%.
Mechanical performance
Minimum bending radius during installation: 5x cable diameter (diameter cable ≤ 50 mm).
Minimum bending radius during installation: 6x cable diameter (diameter cable > 50 mm).
Impact resistance: AG2 Medium severity.
Environmental performance
Chemical & Oil resistance: Good.
UV Resistant according to UNE 211605.
Water resistance: AD8 Submersion.
Installation conditions
Open Air.
Buried.
In conduit.
In tray.
Industrical Electrical Solutions
TROPAC is the exclusive Australian and New Zealand distributor for Top Cable — a leading European cable manufacturer and specialist in flexible cables for over 50 years. The Powerflex brand is TROPAC's market name for the Top Cable range in Australia and New Zealand. XTREM is a Top Cable brand name used specifically for their H07RN-F heavy-duty thermosetting rubber flexible cable — the pump and submersible cable range stocked and supported by TROPAC nationally.
Our Powerflex flexible cable range is manufactured in Europe by Top Cable, stocked locally by TROPAC, and available through your nearest Irrigear store.
