Philmac VersaPHIL Float Valve Range

Philmac VersaPHIL Float Valve Range

Philmac VersaPHIL Float Valve Range

Philmac VersaPHIL Float Valves – Available at your local Irrigear® Independent Experts

Philmac VersaPHIL offers two types of float valves to suit specific application needs:

Philmac VersaPHIL Tapered Thread Float Valves
Highly versatile float valve, suited to a wide range of agricultural applications in concrete troughs and tanks up to 1,500 litres. Available as standard BSP tapered thread, making this valve ideally suited to either concrete troughs and tanks.

Philmac VersaPHIL Parallel Thread Float Valves
Highly versatile float valve, suited to a wide range of agricultural applications in thin-walled poly troughs and tanks up to 1,500 litres. Available as long parallel (fastening) thread with back-nut, making this valve ideally suited to poly and thin-walled troughs and tanks.

Advice. Products. Solutions. Australia-wide. Locally source and buy the Philmac VersaPHIL Float Valve Range and other great Philmac products and solutions from the leaders in pumping, irrigation, filtration, water and fluid management – Irrigear® Independent Experts.

Water is precious – Put your trust in the Philmac VersaPHIL Range:

  • Two lever lengths, 165mm and 300mm to suit all trough applications
  • High pressure shut-off at 1400 kPa
  • High Flow rates up to 425 L/min
  • Ideally suited to troughs up to 1500 litres
  • Excellent UV and corrosion resistance
  • Designed and made in Australia
  • Easy and quick to install
Philmac VersaPHIL Float Valve Range
Explore Philmac Australia Irrigear Store Locator

Philmac VersaPHIL Float Valves –
Product Features

• Inlet Thread Sizes – Available in ¾” and 1” to suit varying inlet sizes.
• Body – High-performance thermoplastic material, with excellent UV, impact, corrosion, and chemical resistance.
• Easy Maintenance – The valves have been designed for easy disassembly, by simply removing the pivot pin and lever assembly which allow servicing in place. A full range of spare partsis available.

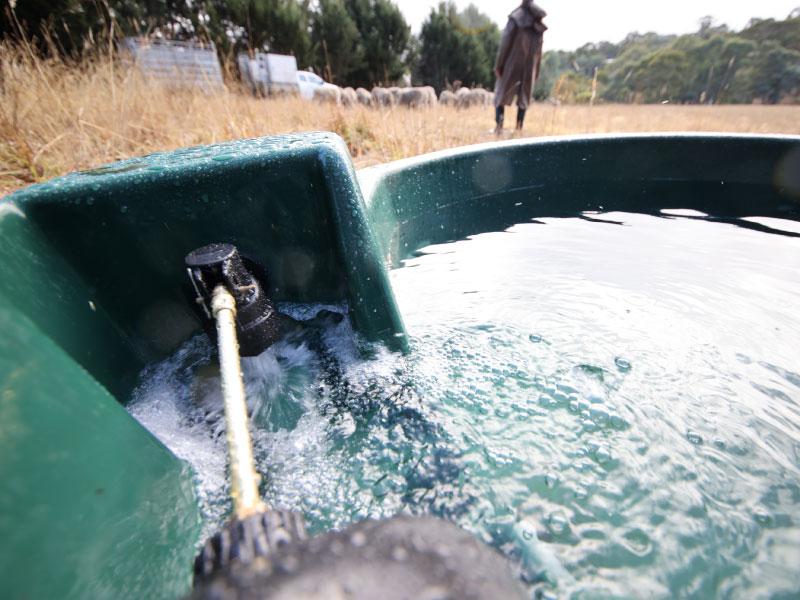

• Outlet cap – The outlet cap has engineered, moulded flow directors to minimise the rosette effect, helping to reduce unnecessary splashing and save water.
• Corrosion Resistant DZR Brass – Lever assembly and pivot pin made from high-quality, DZR brass (dezincification resistant) providing increased strength, corrosion resistance, and longevity.
• Dual Inlet – The VersaPHIL tapered BSP Thread float valve comes standard with a ¾” BSP male inlet and a 1” BSP male inlet. This means one valve suits troughs with ¾” or 1” connections. This means less valves need to be stocked.
• High Flow Rates – Independently tested flow performance giving up to 426 L/min.
• High Pressure Shut-off – Independently tested static shut-off up to 1,400 kPa using the standard lever and recommended float, making this valve suitable for a wide range of installation situations.

Philmac VersaPHIL Float Valves –
Key Benefits

You can’t beat the original
• Comprehensive range of inlet sizes and lever lengths
• Made from high quality materials
• Innovative Australian design
• Made in Australia
• Built to last for generations
• Suited to a wide range of troughs and tanks

Philmac VersaPHIL Float Valve Range - You Can't Beat the Original.
Philmac VersaPHIL Float Valve Range
Philmac VersaPHIL Float Valve Range
Philmac VersaPHIL Float Valve Range - You Can't Beat the Original.
Philmac VersaPHIL Float Valve Range
Philmac VersaPHIL Float Valve Range
Philmac Australia

The connection you can trust.

Since its inception in 1929, Philmac has been a company synonymous with invention, quality and reliability. Pioneering the plastic compression fitting in Australia more than 60 years ago, it is humbling to know that Philmac continues to set the standard today.


Philmac provides a broad range of water management solutions that service agriculture, irrigation, civil, water authority and plumbing sectors.


Philmac fittings and valves area proudly made in Australia with distribution centres across Australia ensuring you have easy access to a wide range of irrigation and stock watering products.


National Customer Enquiries:

1800 755 899

enquiries@philmac.com.au
philmac.com.au


Contact your local Irrigear® independent Experts for more information about how Philmac products can help solve your water management problems.


Philmac products are vailable locally from Irrigear® Independent Experts. Find out more about Philmac VersaPHIL Float Valve Range and other great Philmac solutions!
