Philmac Micro Irrigation Range

Philmac Micro Irrigation Range

Philmac Micro Irrigation Range – available from your local Irrigear® Independent Experts.

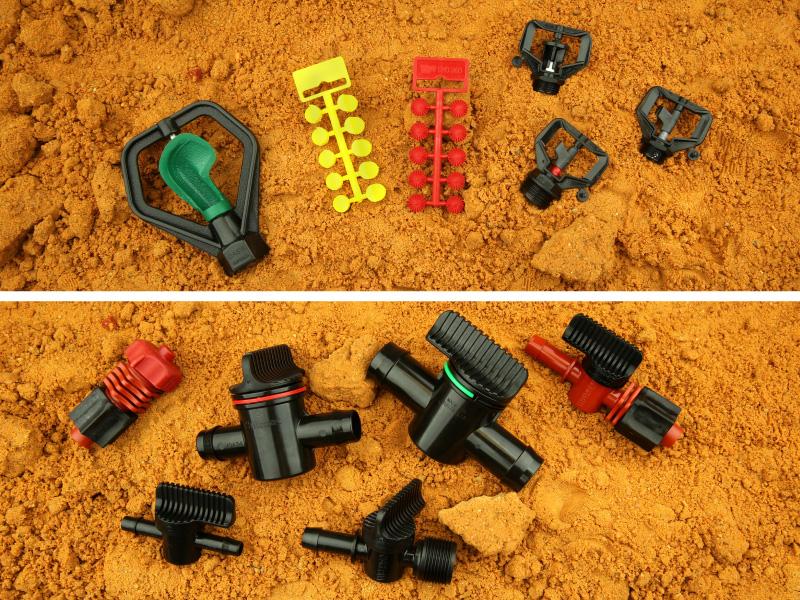

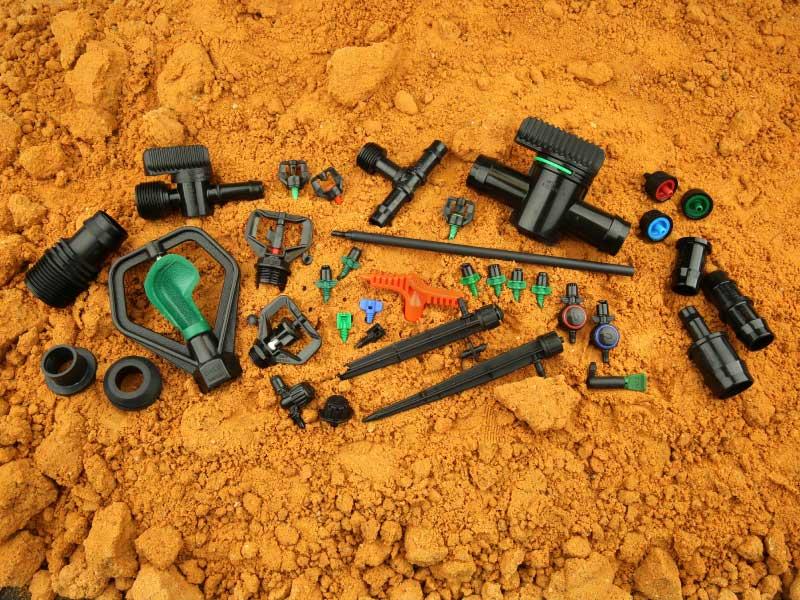

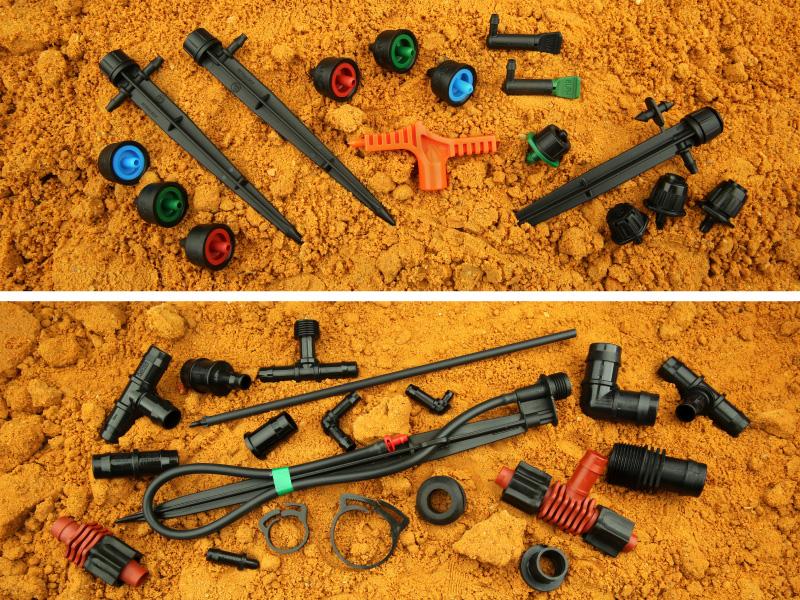

Philmac provides a premium quality micro irrigation solution for both Landscape and Agriculture. Fittings and accessories manufactured from high quality materials are perfectly matched with a wide range of emitters ranging from sprinklers through to drippers and spray jets.



• Stakes – Stakes are used to provide a stable platform to attach a sprinkler or jet. They also provide some elevation above the plants and provide a more efficient irrigation.  Stakes are available with heads for micro sprinklers or jets while some allow flexible tubing or rigid risers to be attached to them.

• Jets – Adjustable Flow (0-80 L/h) – These feature an adjustable knob  or cap which allows the flow and diameter to be varied. Used in residential gardens, flower beds, ground covers, shrubs and trees, the adjustable precipitation rates are ideal for areas where water control is required.

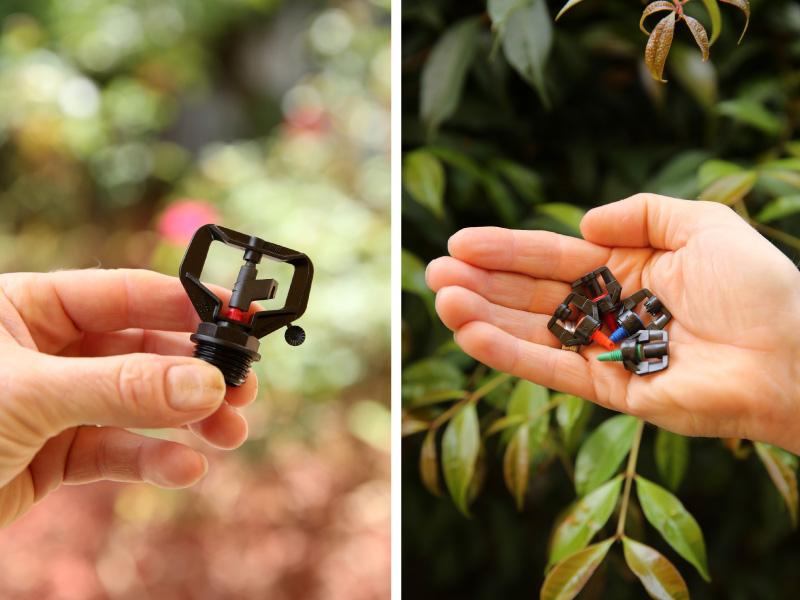

• Mini Sprinklers (up to 300 L/h) – Provide larger diameter throws up to 6 metre
radius.  Used in orchards, vegetables and
gardening as well as green-houses and shade houses.  Also recommended for cooling in agriculture systems. Available in anti-insect system.

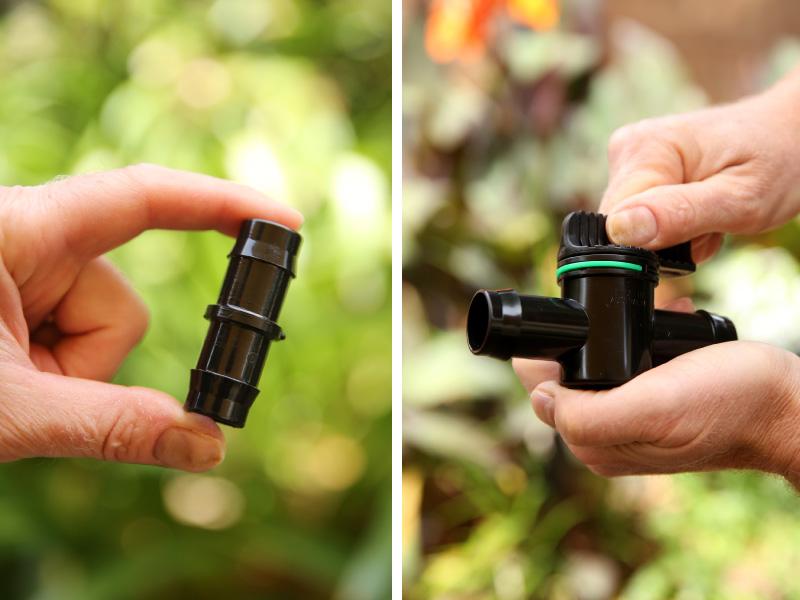

• Static Fittings – These fittings are used to connect LDPE pipe from 10 to 32 mm in diameter. The sharp barbs bite into the pipe to retain the pipe on the fitting.

• Micro Fittings – Typically manufactured in sizes smaller than 10 mm they are used to join flexible PVC and LDPE tubing.  Small micro-valves are also available to suit some sizes.

• Valves – With a quarter turn from off to on these valves control water distribution within the irrigated area.  They can also be used as a flushing valve on the end of lines.

• Drippers – Fixed Flow (up to 8 L/h) A turbulent flow path dripper sealed to maintain
pre-set discharge rates and uniformity. Recommend for gardens and flatter agricultural areas. Fixed Flow Pressure Compensating (up to 8 L/h) The pressure compensating drippers
provide each plant with a constant discharge independent of the pressure. It is an ideal dripper for crops that require precision irrigation. Ideally suited to areas with variable topography or long runs. Adjustable Flow (0 - 40 L/h) These feature an adjustable cap which allows the flow to be varied. Used in residential gardens, flower beds, ground covers, shrubs and trees.

Advice. Products. Solutions. Australia-wide. Locally source and buy products and solutions from the Philmac Micro Irrigation Range and other great Philmac products from the leaders in pumping, irrigation, filtration, water and fluid management – Irrigear® Independent Experts.

\Water is precious – Put your trust in the Philmac Micro Irrigation Range:

• Full range of drippers with fixed flow and pressure compensating
• Flexible design solutions for vineyards, orchards, horticulture or home gardener
• Mini Sprinkler, Jets both fixed and adjustable
• Ideally suited to LDPE systems
• Excellent UV and corrosion resistance
• Designed and made in Australia
• Easy and quick to install

Phimac Micro Irrigation Range

Philmac Micro Irrigation Range Manuals (PDF 4MB)
