All Stainless Steel Permanent Repair Clamps
Stainless Steel Repair Clamps – from Motion Fluid Power Solutions.
Available from your local Irrigear® Independent Experts.

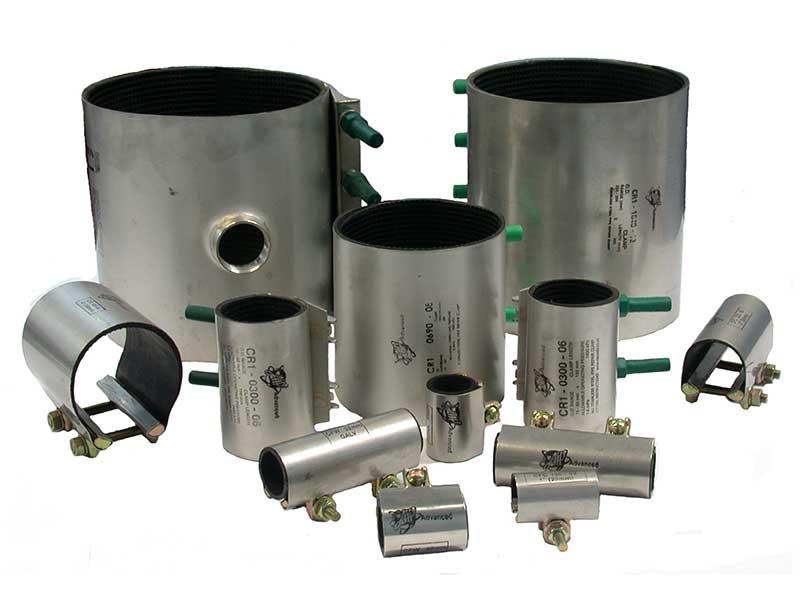

• Full Circumference • Part Circumference • Full Junior Clamps
Stainless Steel Permanent Repair Clamps from Motion Fluid Power Solutions have been designed for easy installation. The bolt receivers are MIG welded to the receiver bar & are fully passivated, the leading edge is rounded to permit the locking washer plate to easily slide into place.
Why go to the expense of digging up and replacing a split pipe when you can simply use an All Stainless Steel Permanent Repair Clamp, saving you man power, time and money. If you are needing an outlet off a pipeline, then why not use an All Stainless Steel Permanent Repair Clamp with either a flanged or threaded outlet. All Stainless Steel Permanent Repair Clamps can be used on PVC, Ductile Iron, Copper, Steel, AC Pipe and much more, why use anything else.
Plus, the armour plate inserted into the gasket is a crucial element in the performance of a repair clamp, as it provides the full circumference sealing capability of the repair clamp.
Our Armour Plates are Vulcanised - They can never fall out.
Advice. Products. Solutions. Australia-wide. Locally source and buy All Stainless Steel Permanent Repair Clamps and other great products from Motion Fluid Power Solutions from the leaders in pumping, irrigation, filtration, water and fluid management – Irrigear® Independent Experts.
- Save on Installation Time & Cost
- Easy Installation
- Range of Diameter Sizes & Outlets
- Stainless Steel
- Built Tough for Australian Conditions

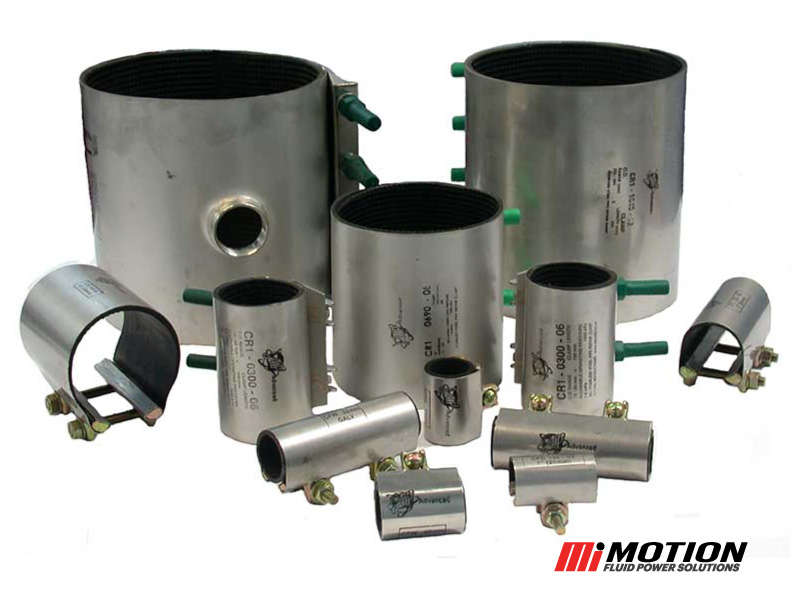

All Stainless Steel Permanent Repair Clamps from Motion Fluid Power Solutions
All Stainless Steel Permanent Repair Clamps - Key Features
Motion Fluid Power Solutions is Australia’s first choice for quality hoses, valves & fittings.
All Stainless Steel Permanent Repair Clamps have been designed for easy installation on irrigation, civil and mining worksites. The clamp gaskets are made to ASTM D2240, the rubber is specially formulated for water service.
All Stainless Steel Permanent Repair Clamps are 316 Stainless Steel and have a locking washer plate; bolts are MIG welded to the receiver bar and fully passivated. Formulated for water service.

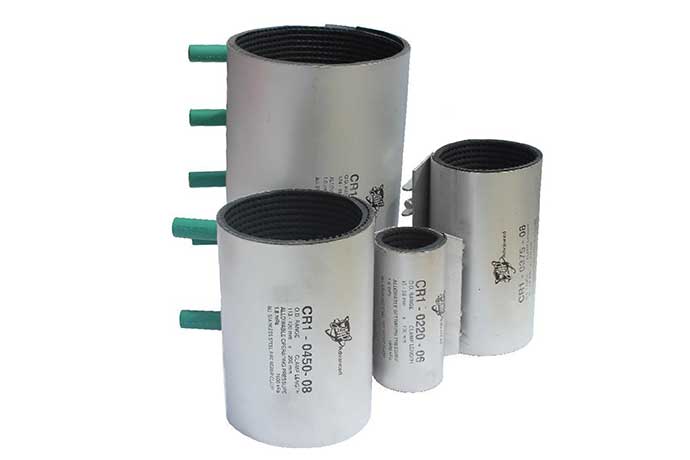

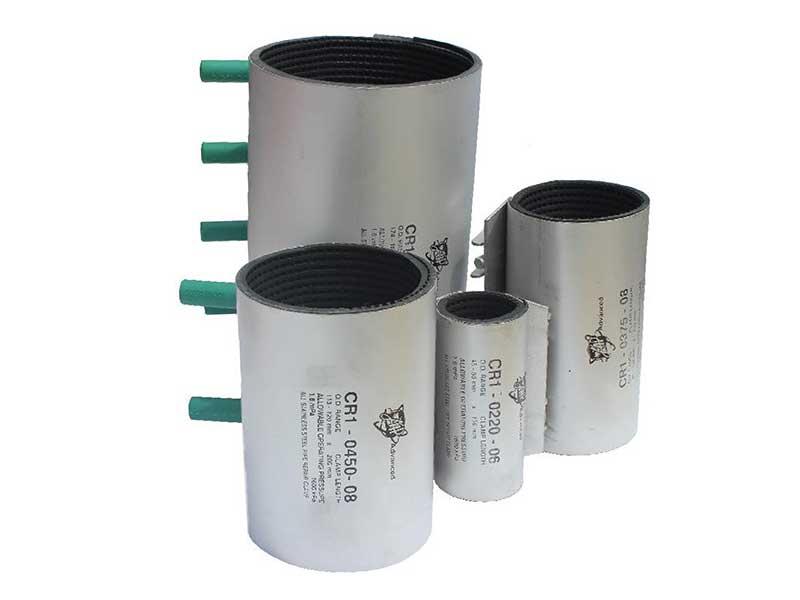

- Full Circumference Clamps: 50mm to 600mm (nominal pipe size)

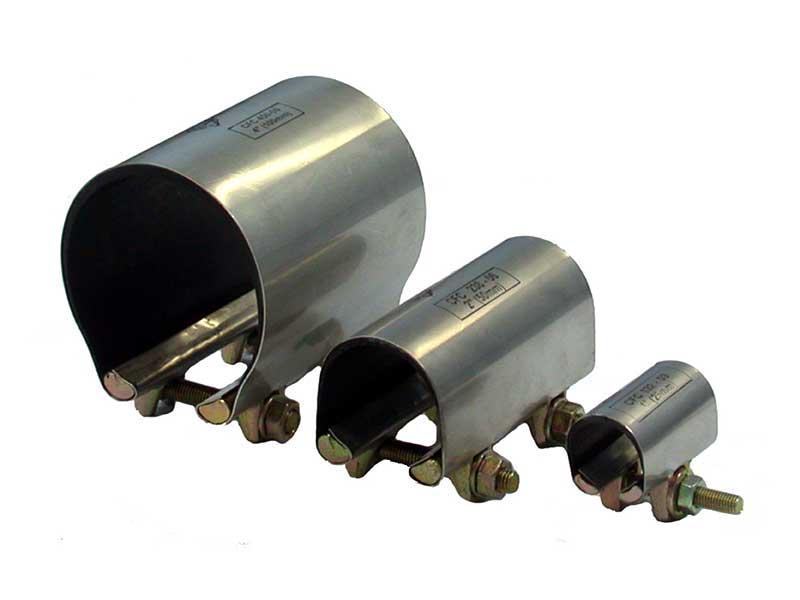

- Half Clamps (Part Circumference Seal): 15mm (½”) to 100mm (4") (nominal pipe size)

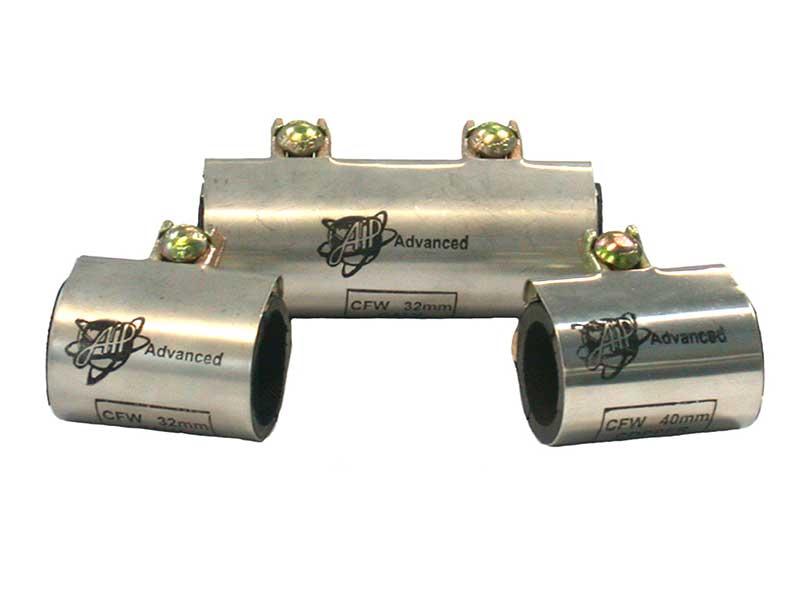

- Junior Coupling (Full Circumference Seal) /Suit Galvanised Pipe: 15mm (½”) to 32mm (1¼")
- Junior Couplling (Full Circumference Seal)/Suite Copper Pipe: 15mm (½”) to 40mm (1½”)
- Available with Flanged or Threaded outlets
The armour plate inserted into the gasket is a crucial element in the performance of a repair clamp, as it provides the full circumference sealing capability of the repair clamp.
Locking Washer Plate: T316 stainless steel. Locks into position for easy tightening of nuts.
Bolt Receivers: T316 stainless steel. MIG welded to receiver bar and bully passivated. Leading edge is rounded to permit locking washer plate to slide into position easily.
Shell: T316 stainless steel.
Bolts: T316 stainless steel, thread rolled for strength. Teflon coated to prevent galling. Bolts are MIG welded to receiver bar and are fully passivated.
Nuts: T316 stainless steel.
Receiver Bars: T316 stainless steel. TIG welded to shell to form a strong fusion, and fully passivated.
Gasket: Made to ASTM D 2240 the rubber is specially formulated for water service and has antioxidant/antiozonant agents to increase shelf life.
Armour: T316 stainless steel, heavy gauge, vulcanised into gasket to provide a perfect fit and to prevent it from ever falling out.
Solutions That Keep You Moving
At Motion Fluid Power Solutions we’re all about giving our customers more brands, more products and more choices. Our state-of-the-art distribution centres with modern technology and systems in place to provide customers with more products and faster delivery.
Talk to your local Irrigear Independent Experts to find out more about All Stainless Permanent Repair Clamps – as well as the entire range of hoses, valves and fittings from Motion Fluid Power Solutions.
