Lowara e-SV Series with hydrovar X

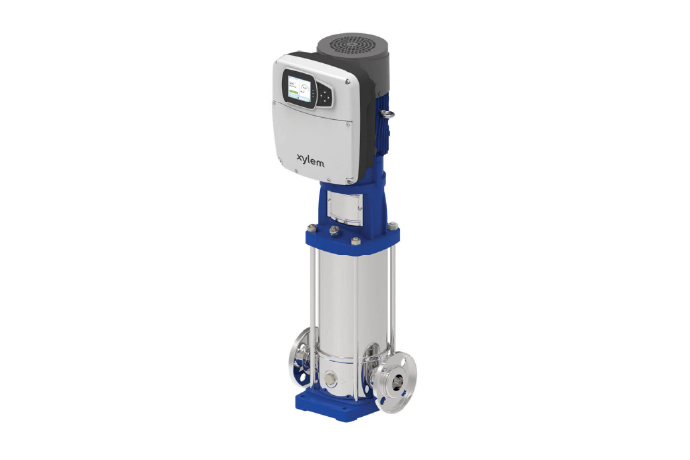

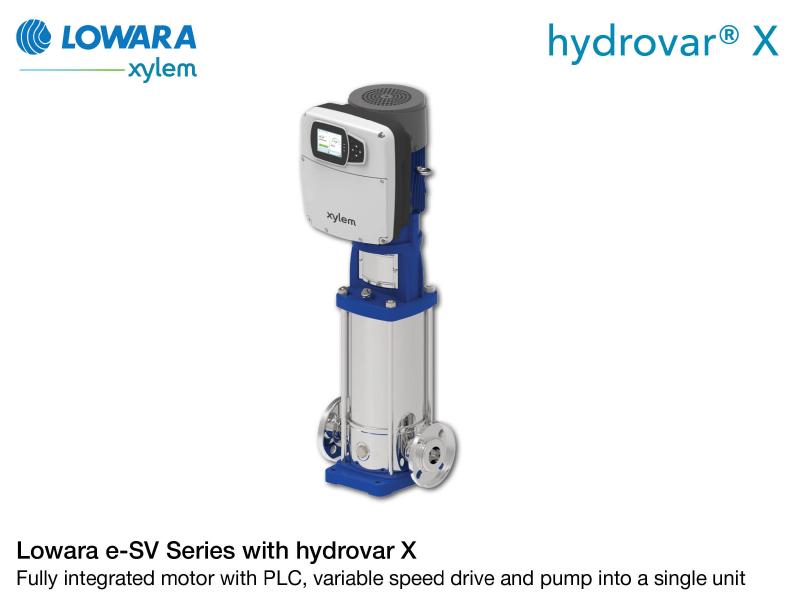

Lowara e-SV Series Pumps with hydrovar X
Fully integrated motor with PLC, variable speed drive and pump into a single unit.
The Lowara e-SV fabricated stainless steel vertical multistage pump is an energy saving, non-priming pump built to withstand a variety of mechanically aggressive and high temperature liquids and is designed to extend uptime and help reduce lifecycle costs in a wide range of demanding applications.
The Lowara e-SV pump is one of the highest efficiency multistage pumps on the market today. Lowara e-SV multistage pumps have a history of performance handling water and liquids such as glycol, oils/solvents, and more in the in the industrial, municipal, commercial building services and agricultural markets.
hydrovar X Integrated Motor & Drive Solution
hydrovar X combines an integrated IE5 PM-assisted reluctance synchronous motor with a variable speed drive, delivering optimal performance and significant energy savings for a quick return on investment.
Advice. Products. Solutions. Australia-wide. Locally source and buy Lowara e-SV Series with hydrovar X from the leaders in pumping, irrigation, filtration, water and fluid management – Irrigear® Independent Experts.
Lowara e-SV Series with hydrovar X is suitable for a wide range of applications, including:
- Water supply and pressure boosting
- Water treatment
- Light industry
- Irrigation and farming
- Heating, ventilation and air-conditioning
Lowara e-SV Series
Key Features
Extra Efficient:
The Lowara e-SV™’s hydraulics, combined with a high-effi ciency motor (IE3) deliver maximum efficiency.
Easy to Maintain:
The e-SV™’s design allows removal of the mechanical seal without having to remove the motor, reducing repair time by up to 50%. A standard DIN mechanical seal, wearing components, service tools and standard IEC motors enable faster and easier maintenance and servicing.
Energy Saving:
Pumps are among the largest users of industrial energy. Do your part to reduce CO2 emissions and your impact on the environment - and improve your bottom line - by taking advantage of the e-SV™’s lower energy requirement. Use a e-SV™ pump along with a variable speed drive such as Xylem’s Hydrovar® or its Smart version, and save even more energy and money.
The Lowara e-SV™ range of pumps features 11 models, and can be specially configured for a wider range of applications. The line is interchangeable with Lowara’s SSV series of vertical multi-stage pumps for added flexibility in meeting pumping requirements. Additionally, five e-SV™ manufacturing facilities around the world provide shorter lead times and faster service.
- Extra Efficient
- Easy to Maintain
- Energy Saving
- Range of Models
hydrovar X
Product Highlights
Flexibility:
Available in 3 phase power from 2.2 kW to 22 kW, the Hydrovar X is suitable for a wide range of applications.
Sustainable:
Delivers superior performance with best-in-class energy efficiency.
Simplicity:
Simple to use: Built-in set up Genie and application software simplifies commissioning, programming, and operation.
Comprehensive Protection:
Integrated safety functions safeguard both pump and motor for long-term reliability.
Multi-pump capability: Supports up to 8 pumps with no single failure point, ensuring uninterrupted operation.
Advanced Control:
Equipped with an IE5 motor for highest efficiency and extended motor life.
Quick installation:
Wiring chamber allows fast access to terminals.
Accessible monitoring:
Backlit graphic colour display along with Modbus, BACnet and Bluetooth connectivity using the Smart Phone mobile app access allow for remote access management.
- Flexibility
- Sustainable
- Simplicity
- Comprehensive Protection
- Advanced Control
- Quick installation
- Accessible monitoring
- Delivery: up to 160 m3/h
- Head: up to 330 m
- Maximum operating pressure: 16, 25 or 40 bar (PN16, PN25 or PN40)
- Temperature of pumped liquid: from -30°C to +120°C (up to +180°C as option)
- Environment temperature: -20° C to +50° C with no performance derating
- Insulation class: 155 (F)
- Protection: IP55
- Water supply and pressure boosting
- Water treatment
- Light industry
- Irrigation and farming
- Heating, ventilation and air-conditioning
