Franklin Electric Electroflo Solar – available from your local Irrigear® Independent Experts.

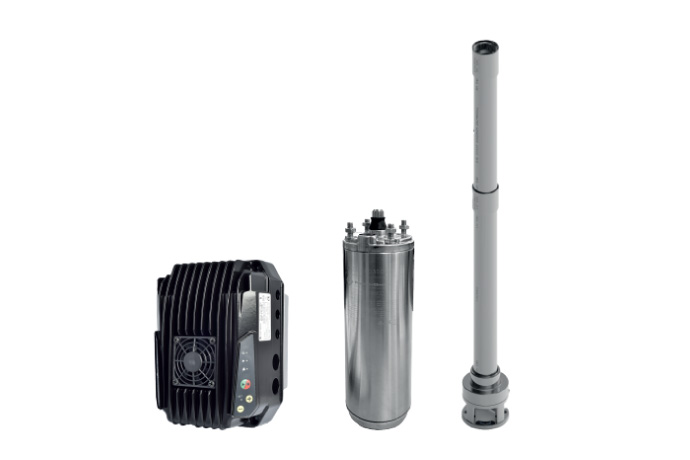

Electroflo Products Overview
Franklin Electric Electroflo Solar-ready pumping solutions combine high-efficiency motor technology with durable pump design to deliver reliable performance in demanding environments.

Drive-Tech Mini –
The Drive-Tech Mini maximises system efficiency through advanced MPPT control, ensuring optimal use of DC solar input power. Built-in diagnostics, protection features and a soft-start function help prevent water hammer and extend the life of connected equipment. The unit supports both AC induction and permanent magnet synchronous motors and is built with a robust IP66 rating to protect against dust, insects, weather and wildlife. As a variable frequency drive (VFD), it provides flexible control and is fully compatible with the UnyConnect mobile app for monitoring and adjustments.

Electroflo PD Pump –
Purpose-designed for solar operation, the Electroflo PD Pump features reduced vibration and lower drive-shaft stress for smoother, more stable performance. A longer and wider seal line improves pump life, while an enhanced drive-shaft design boosts durability. Its complete stainless-steel body ensures long-term reliability in harsh water conditions. The pump’s advanced rotor and stator geometry results in lower start-up power requirements, increased daily water output and improved efficiencies, with operational capabilities reaching heads up to 220 m and flow rates between 10–40 l/m.

4” Encapsulated Permanent Magnet Motor –
The 4" encapsulated permanent magnet motor delivers high electrical efficiency for reduced running costs. It holds drinking-water approvals and performs reliably in water with elevated salinity. The Franklin StatorShield™ encapsulation system, pressure-equalising diaphragm and 4 kN thrust load capability support long service life. The motor operates within a wide temperature range and is rated up to 2.2 kW at 220V (100 Hz).

Advice. Products. Solutions. Australia-wide. Locally source and buy Franklin Electric Electroflo Solar products and other great Franklin Electric products from the leaders in pumping, irrigation, filtration, water and fluid management – Irrigear® Independent Experts.

Together, the Franklin Electric Electroflow Solar products provide a robust, efficient and dependable solar pumping solution for a wide range of applications:

• Durable construction engineered for industrial and commercial environments
• Energy-efficient motor technology to reduce operating costs
• Low-noise operation for improved comfort and usability
• Multiple configuration options to suit diverse installation requirements
• Integrated safety features for reliable long-term operation
• Simple installation with minimal maintenance needs.
• Compatible with UnyConnect app (Drive-Tech Mini)
• Robust corrosion-resistant materials for extended service life
• Designed and supported by Franklin Electric for quality assurance and performance
