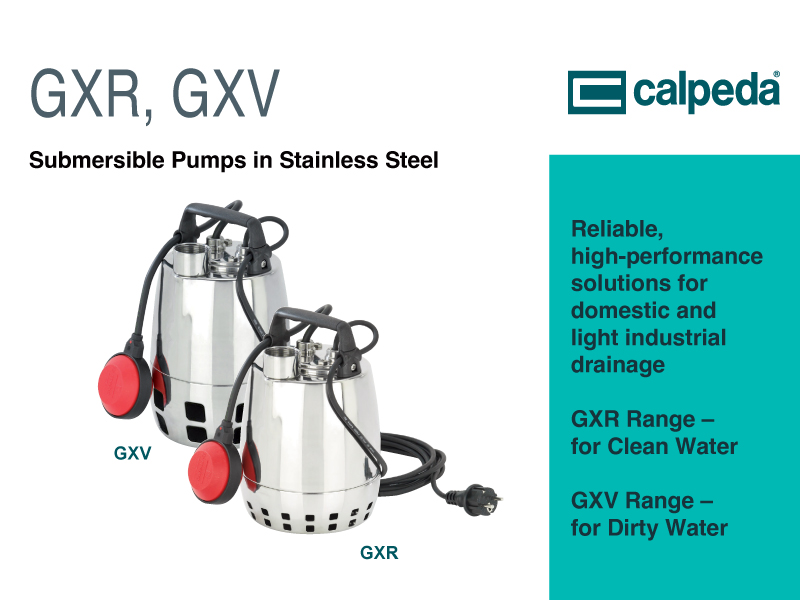

Calpeda GXR, GXV Series Submersible Pumps
- Home /
- Brands /
- Calpeda Pumps /
- Calpeda GXR, GXV Series Submersible Pumps
Calpeda GXR, GXV Series Submersible Pumps
Calpeda GXR and GXV Series Submersible Pumps in Stainless Steel. Available at your local Irrigear® independent Experts.
Calpeda GXR and GXV Pumps for Domestic and Light Industrial Drainage
The Calpeda GXR and Calpeda GXV ranges offer reliable, high-performance solutions for domestic and light industrial drainage. Crafted in chrome-nickel stainless steel and engineered with Italian precision, these single-impeller submersible pumps ensure efficient handling of wastewater, stormwater, and groundwater in both residential and commercial applications.
Calpeda GXR Range – for Clean Water
Compact and lightweight, the Calpeda GXR series is ideal for pumping clean or slightly dirty water. Perfect for residential use, typical applications include:
• Cellar and basement drainage
• Emptying tanks and domestic sumps
• Rainwater harvesting systems
• Emergency flood water removal
Calpeda GXV Range – for Dirty Water
The Calpeda GXV series is built to handle dirty water with suspended solids, making it suitable for more demanding environments such as:
• Draining pits, ponds, and construction sites
• Handling greywater or water with debris
• Garden and landscape water management
Advice. Products. Solutions. Australia-wide. Locally source and buy Calpeda Pumps products and solutions including Calpeda GXR and Calpeda GXV Submersible Pumps from the leaders in pumping, irrigation, filtration, water and fluid management – Irrigear® Independent Experts.
Calpeda GXR and Calpeda GXV Submersible Pumps:
- Calpeda GXR Submersible Pumps for Clean Water
- Calpeda GXV Submersible Pumps for Dirty Water
Calpeda GXR and GXV Series Submersible Pumps
Calpeda GXR and GXV Submersible Pumps:
Product Highlights
Single-impeller submersible pumps in chrome-nickel stainless steel, with vertical delivery port.
Calpeda GXR: with open impeller.
Calpeda GXV: with free-flow (vortex) impeller.
Motor cooled by the pumped water passing between the motor jacket and the external jacket. Double shaft seal with oil chamber.
- Stainless steel hydraulic components (AISI 304) for superior corrosion resistance and durability
- Choice of vortex or open impeller for handling solids up to 25 mm grain size
- Available with integrated float switch options
- Motor cooled by pumped water flowing between the motor jacket and external jacke
- Double shaft seal with oil chamber for extended service life and protection against water ingress
- Wide range of models to suit diverse applications
- Liquid temperature: up to +50 ℃
- Maximum immersion depth: 5 m
- Minimum water level with float switch: GXR = 70 mm, GXV = 130 mm
- Minimum water level (manual operation): GXR = 15 mm, GXV = 30 mm
- 2-pole single-phase induction motor, 50 Hz, with float switch and thermal protection
- Continuous duty operation
Calpeda GXR and GXV Submersible Pumps:
Applications
Calpeda GXR:
• For clean water containing solids up to 10mm grain size.
• For draining rooms or or emptying tanks.
• Extraction of water from ponds, streams or pits and for rainwater collection.
• For irrigation purposes.
Calpeda GXV:
• For clean or slightly dirty water, containing solids up to 25mm grain size.
• Particularly suitable for liquids with a high solid content.
• For outdoor use a power supply cable of not less than 10m should be used in accordance with: EN 60 335-2-41.
