REEFE® RBK Series Submersible Bore Pump Kits
REEFE® RBK Series Submersible Bore Pump Kits - Faster Bore Pump Setup Starts Here.
Available at your local Irrigear® Independent Experts.
Complete 4" submersible bore pump kits designed to simplify installation and support reliable rural water supply.

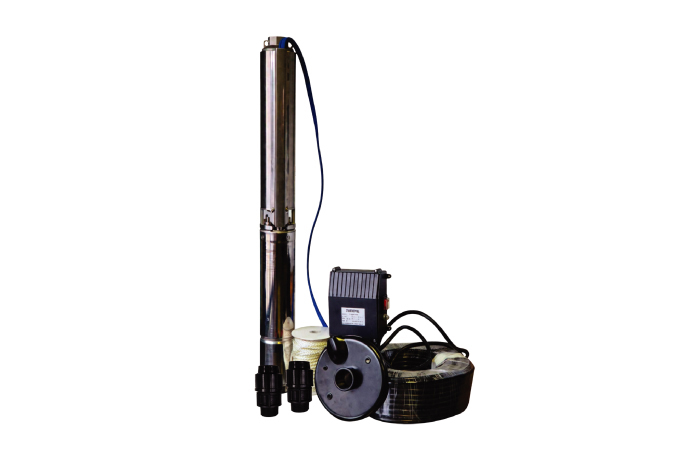

The REEFE RBK Series brings the key components for bore pump installation together in one ready-to-install package. Each kit includes the pump, 50m cable, 50m safety rope, bore cap, start controller and Plasson fittings, helping reduce time spent sourcing separate parts before installation.
Built for bore hole installations, irrigation, tank filling, stock watering and general water supply, the RBK Series supports dependable performance across rural and farm applications. With stainless steel construction, a 100% tested European-made motor and models capable of up to 90m head, it is designed to make bore water setup faster, easier and more reliable.
Advice. Products. Solutions. Australia-wide. Locally source and buy REEFE RBK Series Submersible Bore Pump Kits and other REEFE® products from the leaders in pumping, irrigation, filtration, water and fluid management – Irrigear® Independent Experts.
- Submersible Bore Hole Installations
- Stock Watering
- Irrigation
- General Water Supply
- Tank Filling
REEFE® RBK Series – Additional Information
REEFE RBK Series Submersible Bore Hole Pump Kits are offered in an easy to order compact and complete package with everything you need to get you started. Includes 50m of 3-core submersible cable, 50m of safety rope, bore cap and start controller. Powered by the pre-coupled quality and reliable 100% tested European Made motor. Our packages are built specifically for quick and easy well installations. This specific range offers models capable of heads of up to 90 metres with maximum flow rates of up to 6m³/hr:
• Everything Included: The kits eliminate the guesswork. They come 'fully loaded' with the pump, 50m of submersible cable, 50m of safety rope, a bore cap, and the start controller.
• Premium European Motors: Powered by factory-tested, European-made motors. They are built to handle long, rigorous pumping runs (rated for 25 starts per hour).
• Built to Last: Key components are corrosion resistant, including the outer casing, suction screen, and discharge head, are constructed from Grade 304 Stainless Steel to resist rust and wear.
• Easy-Connect Fittings: They feature Australian-made Plasson fittings that are pull-out resistant and specifically designed to make the physical drop and installation much easier.
• High Efficiency and Protection: Impellers and diffusers are made of wear-resistant Noryl and glass-reinforced polycarbonate. The motors also include built-in thermal overload protection to prevent them from burning out.
- Robust Durability
- Complete, Compact Package
- Plug-and-Play Convenience
- Easy Installation
REEFE® RBK Series – Features & Benefits
• Standard 4” NEMA motor mount for convenience for future servicing
• S1 Continuously rated motors for peace of mind on long pumping applications. (rated for 25 starts per hour)
• Each unit is 100% tested for peace of mind, quality control
• Ready to install, plug in play design to maximise time saving on setup
• Corrosion resistant SS for a lasting investment
• Starting method is via a permanent split capacitor – external for convenient servicing
• Supplied with Australian-made Plasson pull out resistant fittings, specifically designed for easy install
RBK Series Models:
- RBK0710 – Head/M 25
- RBK0715 – Head/M 53
- RBK1014 – Head/M 74
- RBK1814 – Head/M 68
Materials / Construction:
- Grade 304 Stainless Steel discharge head, outer casing, suction screen, suction connector, pump shaft, coupling and motor shell
- Ceramic / Carbon mechanical seal
- Diaphragm and Oil seal in NBR
- Noryl impeller with glass reinforced polycarbonate diffuser
- Built-in check valve
- Insulation Class F with built-in thermal overload protector
- Ingress Protection IP68 maximum immersion rating to 200m ensuring capacity far beyond the design application
- 50m power cable - 3 wire
- 1.5mm² (RBK0710, RBK0715, RBK1014)
- 2.5mm² (RBK1814)
Better, Faster, Easier
Ascento Group Australia is a specialist supplier of an extensive range of REEFE® pressure pumps, submersible pumps, pump stations, controls, water conservation and water gardening solutions – trusted in the Australian pumping, irrigation and plumbing indusry sectors for over 40 years.
Talk to your local Irrigear® Independent Experts to find out more about REEFE RBK Series Submersible Bore Hole Pumps Kits and other REEFE products, parts and solutions which are right for your pumping, irrigation or water management project.
